General

• Dimensions

• Osmo Mobile 7P
  Unfolded: 288×107×96 mm (L×W×H)
  Folded: 190×95×46 mm (L×W×H)Osmo Mobile 7
  Unfolded: 278×107×93 mm (L×W×H)
  Folded: 179×95×39 mm (L×W×H)

• Weight

• Osmo Mobile 7P
  Gimbal + Built-in Tripod + Magnetic Phone Clamp + Multifunctional Module: Approx. 368 gOsmo Mobile 7
  Gimbal + Built-in Tripod + Magnetic Phone Clamp: Approx. 300 g^{Data was collected in a controlled environment. Actual experience may vary.}

• Extension Rod

• Osmo Mobile 7P
  Built-in Extension Rod
  Max Extension Length: 215 mmOsmo Mobile 7
  No Built-in Extension Rod

• Compatible Phone Weight

• 170-300 g

• Compatible Phone Thickness

• 6.9-10 mm

• Compatible Phone Width

• 67-84 mm

• Bottom Port

• 1/4″ Screw Hole

Battery

• Type

• Li-Po 1S

• Capacity

• 3350 mAh

• Energy

• 12.06 Wh

• Charging Temperature

• 5° to 40° C (41° to 104° F)

• Operating Temperature

• 0° to 40° C (32° to 104° F)

• Operating Time

• Osmo Mobile 7P
  Approx. 10 hours
  (Measured with the gimbal balanced in a level and stationary state without additional accessories)Osmo Mobile 7
  Approx. 10 hours
  (Measured with the gimbal balanced in a level and stationary state without additional accessories)^{With the Multifunctional Module’s intelligent tracking feature enabled and the fill light off, the operating time is approximately 5 hours. When the intelligent tracking feature is on and the fill light is set to maximum brightness, the operating time is approximately 4 hours.}

• Charging Time

• Approx. 2.5 hours
  (Measured with a 10W USB-C charger)

• Gimbal Charging Port

• USB-C

• Phone Charging

• Supported

Gimbal

• Controllable Range

• Pan: -99° to 210°
  Roll: -67° to 245°
  Tilt: -20° to 40°

• Mechanical Range

• Pan: -109° to 222°
  Roll: -77° to 255°
  Tilt: -224° to 100°

• Max Control Speed

• 120°/s

Wireless Mode

• Model

• Bluetooth 5.3

Software

• App

• DJI Mimo

Tripod

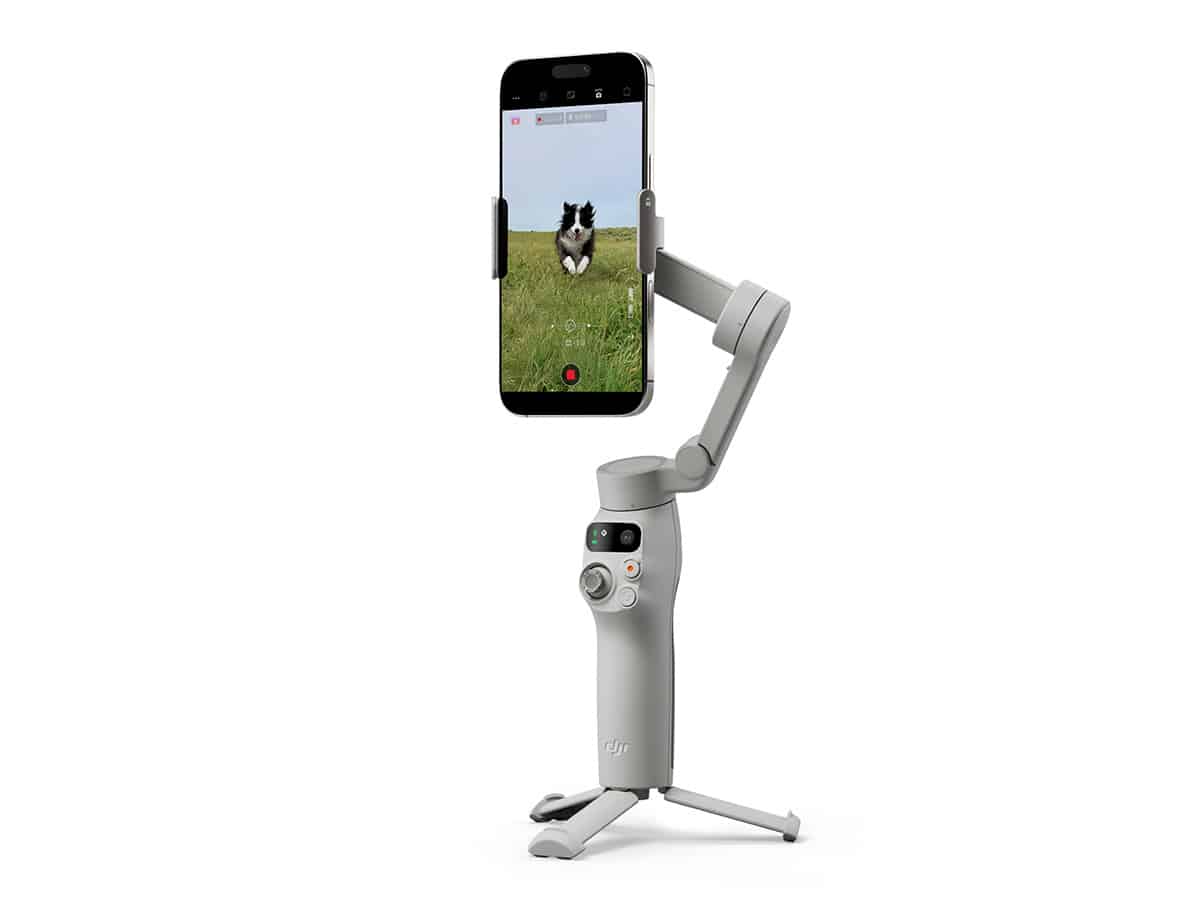

• Dimensions

• Built-in Tripod
  Length: 67 mm

Multifunctional Module

• Compatibility

• Osmo Mobile 7P
  Supported (standard)Osmo Mobile 7
  Supported (optional)

• GFSK

• 2 Mbps

• GFSK Transmitter Power (EIRP)

• < 16 dBm

• GFSK Operating Frequency

• 2.4000-2.4835 GHz

• Bluetooth Protocol

• Bluetooth 5.3

• Bluetooth Transmitter Power (EIRP)

• < 16 dBm

• Bluetooth Operating Frequency

• 2.4000-2.4835 GHz

• Fill Light Illuminance

• 40 lux

  ^{This represents the maximum brightness measured at a distance of 0.6 meters from the subject and should be used for reference only.}

• Fill Light Color Temperature

• 2500-6000 K
